Custom Bandwidth, Miniaturized Waveguide Filters

MinWave’s patented RF front-end systems are known for their miniaturization and low-loss properties. With custom features like bandwidth, we also offer tailored solutions to meet requirements of various applications .

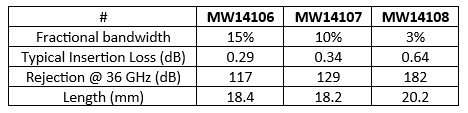

Here, you can discover our ultra-compact Ka-band waveguide filters: MW14106, MW14107, and MW14108. These filters provide varying fractional bandwidths (3% to 15%), while maintaining an approximate footprint (+7%) and fixed center frequency of 28.5 GHz.  From C-band to Ka-band, MinWave delivers quick custom solutions with waveguides and coaxial ports, as well as surface-mount solutions. By using MinWave  cutting-edge RF components, you will redefine performance and design possibilities. Get quote here

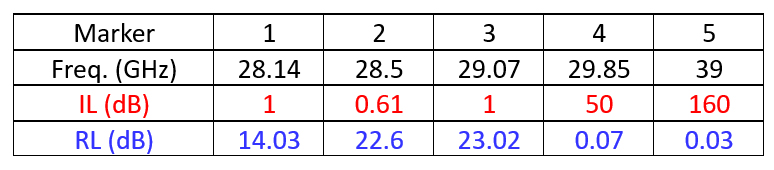

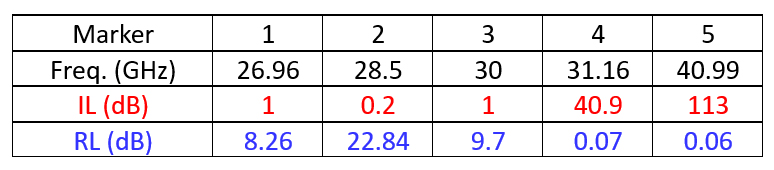

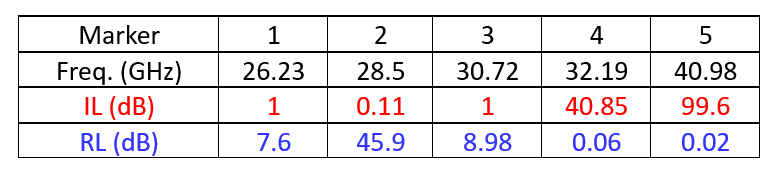

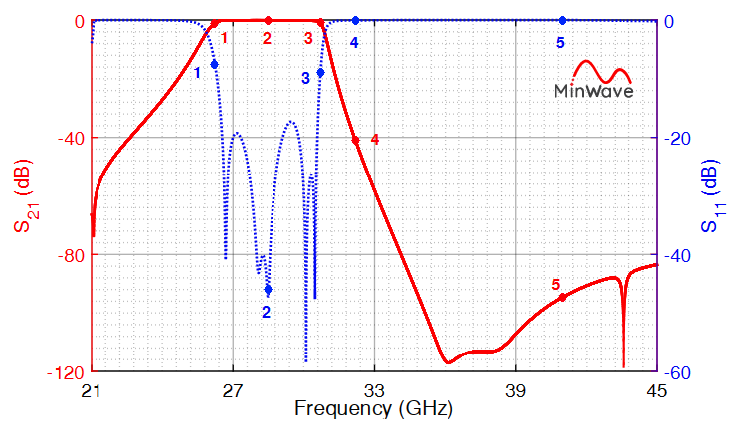

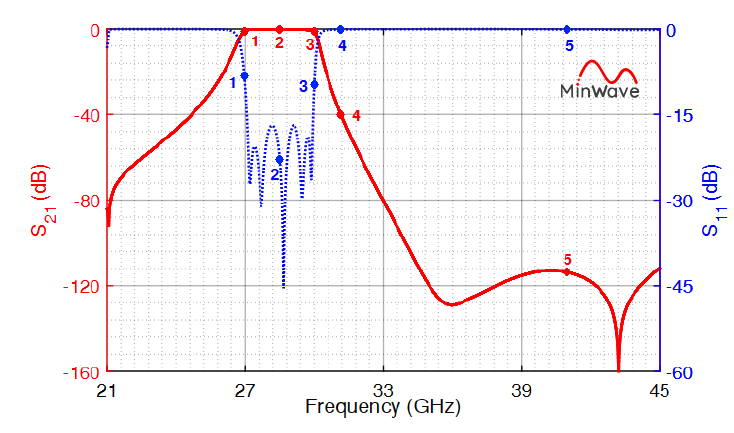

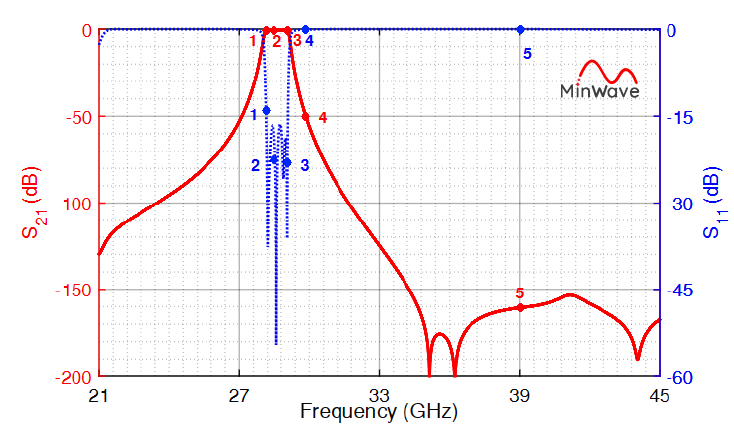

Typical Performance
