Connectorized Solutions:
Unlocking the Potential of MinWave Coaxial Filters

MinWave offers various connectorized solutions, featuring coaxial connectors such as SMA and SMP. These solutions boast a significantly smaller footprint than their waveguide counterparts, making them ideal for 4G and 5G telecommunications applications.
Our custom solutions span from C-band to Ka-band, offering compact and lightweight alternatives that outperform conventional coaxial filters while maintaining superior energy efficiency and durability compared to ceramic filters. Just like their waveguide counterparts, MinWave’s connectorized filters exhibit a sharp roll-off, enhancing spectral efficiency, a vital requirement for telecom operators striving for optimal performance.
One standout example is the MW12300, a compact and sharp C-band coaxial filter operating within a passband frequency range of 3.3 to 3.8 GHz, ideally suited for 5G applications.

Choose MinWave’s connectorized solutions to harness the power of cutting-edge technology, optimizing spectral efficiency and enabling seamless integration within your telecom systems. Experience the future of connectivity with MinWave’s exceptional coaxial filters. Get quote here

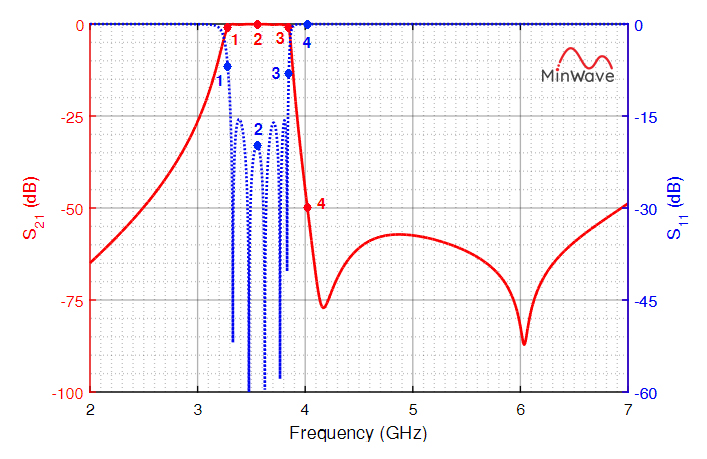

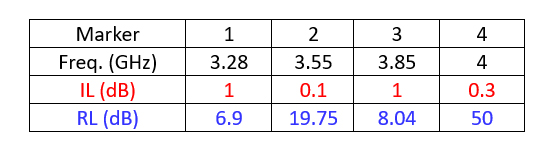

Typical Performance

Introducing MinWave Bent Solutions:
Unleashing Customizable Waveguide Filters

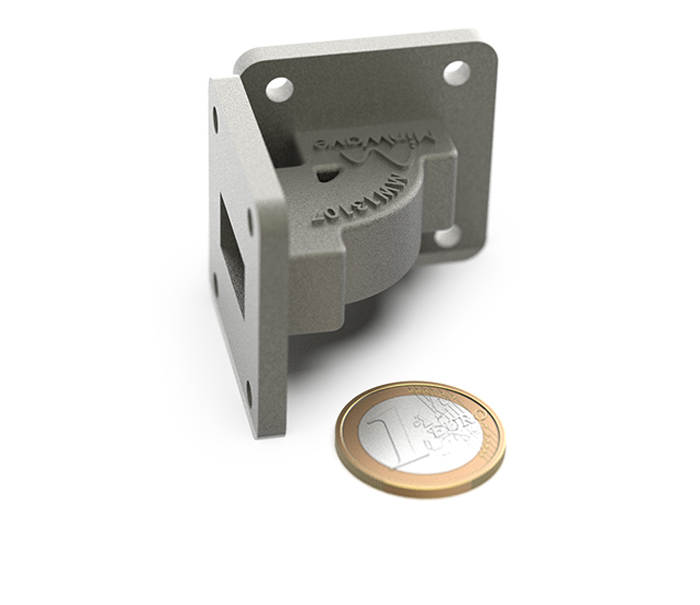

MinWave takes pride in its development of waveguide E and H-bent filters. These innovative filters allow for signal filtration within an ultra-compact volume while seamlessly navigating sharp bends. Our bent filters exhibit remarkable features such as a small form factor, tight bending radius, lightweight construction, and compatibility with standard waveguide ports.  One exemplary solution is MW13107 E-bent Ku-band filter, illustrating the power of MinWave bent solutions. Get quote here

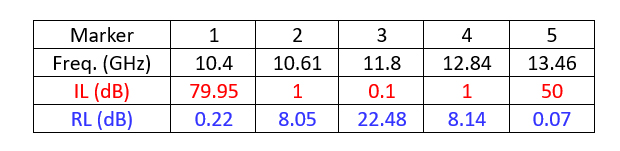

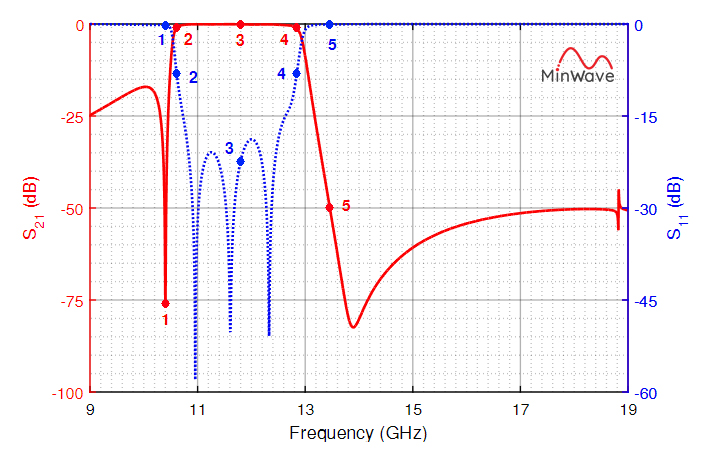

Typical Performance

Miniaturized Ridged Waveguide Filters

MinWave has developed a range of waveguide filters featuring single and double-ridge waveguide ports, available in both standardized and customized configurations. The incorporation of ridges in these filters brings several advantages, including a reduced cutoff frequency, lower impedance, and a wide bandwidth free from high-mode interference compared to rectangular waveguides with the same inner dimensions.

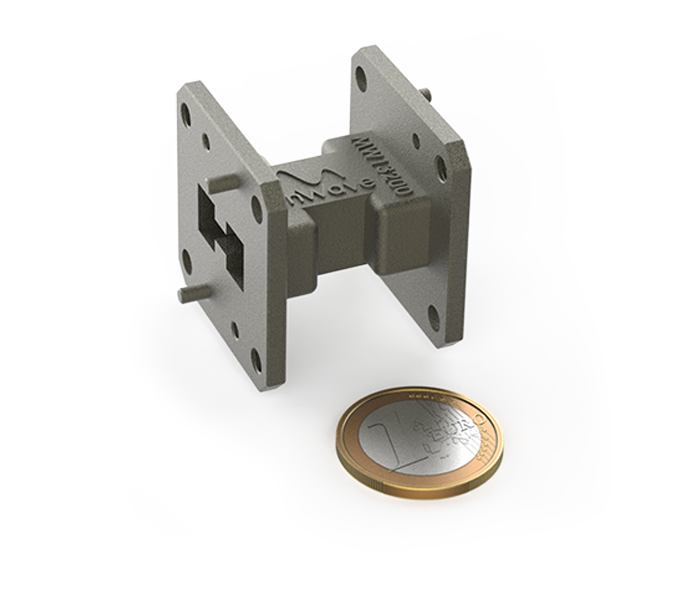

Here please find specification of  MW13201, a Ku-band double ridge waveguide filter equipped with standard ports.Get quote here

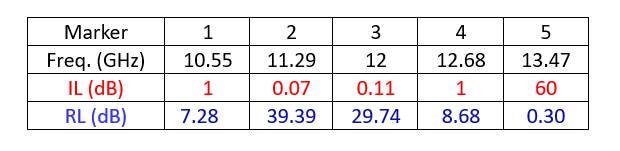

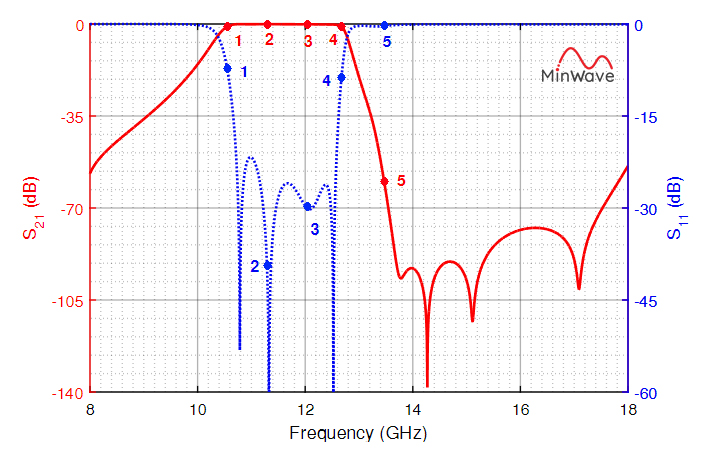

Typical Performance

Request a Quote
